Three Phase DC Brake Motor Supplier from Ahmedabad. Bhavani Motors is a trusted Three Phase DC Brake Motor Manufacturer in Ahmedabad, offering high-performance electromagnetic brake motors for industrial applications requiring reliable stopping, precise positioning, and secure load holding. Available in 0.5 HP to 20 HP, these motors are manufactured in 720, 960, 1440, and 2880 RPM configurations. They operate on 415V, 50Hz Three Phase power supply and are equipped with 24V DC or 190V DC electromagnetic brakes. A matching brake rectifier is supplied as standard for dependable brake operation. The DC brake works on a fail-safe principle. When power is supplied, the brake releases and the motor operates normally. During power failure or when the supply is switched off, the brake automatically engages to stop the motor and securely hold the load. Bhavani DC Brake Motors are available in B3 Foot Mounted, B5 Full Flange, and B35 Foot Cum Flangeconfigurations. Manufactured with 100% copper winding, IE2 efficiency, and TEFC construction, these motors provide reliable performance and long service life. IP44/IP55 protection, Class H insulation, and application-specific duty cycles are available on request. Technical Specifications • Product Type: Three Phase DC Electromagnetic Brake Motor • Power Range: 0.5 HP to 20 HP • Available Speeds: 720, 960, 1440 & 2880 RPM • Motor Voltage: 415V, Three Phase • Frequency: 50Hz • Brake Type: DC Electromagnetic Fail-Safe Brake • Brake Coil Options: 24V DC & 190V DC • Brake Rectifier: Included as Standard • Brake Operation: Brake Engages Automatically When Power is OFF • Brake Torque: Selected According to Motor HP & Application • Mounting Options: B3, B5 & B35 • Efficiency: IE2 Standard; IE3 Available on Request • Winding: 100% Copper Winding • Insulation: Class F Standard; Class H on Request • Protection: IP44 / IP55 Available • Enclosure: TEFC • Duty Types: S1, S2, S3 & S4 • Aluminium Body Range: 0.5 HP to 3 HP • Cast Iron Body Range: 0.5 HP to 20 HP • IEC Frame Size: 71–160L • Manual Brake Release: Available on Request • Warranty: 12 Months Against Manufacturing Defects Key Features • Fail-safe DC braking system • Automatic brake engagement during power failure • 24V DC & 190V DC brake coil options • Brake rectifier included • Application-specific brake torque • 100% copper winding • IE2 efficiency as standard • IE3 efficiency available • TEFC enclosed construction • IP44/IP55 protection • Class F insulation • B3, B5 & B35 mounting options • S1, S2, S3 & S4 duty cycles • Manual brake release available Customization Options • Special shaft diameter and length • Double or extended shaft • Customized flange diameter and PCD • Custom motor voltage and frequency • Manual brake-release mechanism • Class H insulation • IE3 efficiency • Application-specific duty cycles Applications Bhavani Three Phase DC Brake Motors are widely used in: • EOT Cranes • Industrial Hoists • Lifting Equipment • Conveyor Systems • Material Handling Equipment • Packaging Machinery • Textile Machinery • Machine Tools • Cable Reeling Systems • Industrial Automation • Winding & Unwinding Machines • Position Holding Equipment FAQs 1. What is the power range of Bhavani DC Brake Motors? Bhavani DC Brake Motors are available from 0.5 HP to 20 HP. 2. What brake coil options are available? The motors are available with 24V DC and 190V DC electromagnetic brake coils. 3. Can the motor be customized? Yes, Bhavani offers customization for shaft dimensions, flange design, voltage, duty cycle, insulation, and manual brake release. Why Choose Bhavani Motors? Bhavani Motors manufactures reliable Three Phase DC Brake Motors using premium-quality components, 100% copper winding, and precision engineering. Our motors deliver dependable braking performance, energy efficiency, and long service life for demanding industrial applications. Looking for a reliable Three Phase DC Brake Motor? Contact Bhavani Motors today for expert technical support, customized motor solutions, and a competitive quotation for your application.

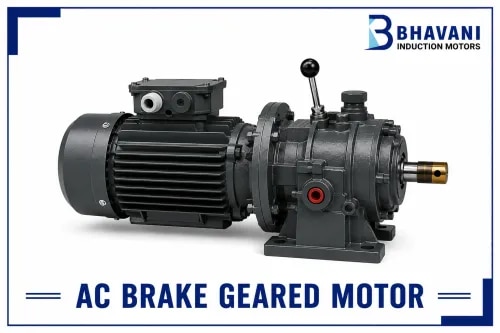

Three Phase AC Brake Motor Dealer in Gujarat. Bhavani Motors is a trusted Three Phase AC Brake Motor Manufacturer in Ahmedabad, offering high-performance brake motors designed for industrial applications that require quick, reliable, and fail-safe stopping. These motors are widely used in cranes, hoists, conveyors, material handling equipment, and various industrial machines. Available in 0.5 HP to 20 HP, Bhavani Three Phase AC Brake Motors are manufactured in 720, 960, 1440, and 2880 RPM configurations. They operate on a standard 415V, 50Hz Three Phase power supply and are equipped with a 415V AC electromagnetic brake for dependable braking performance. The AC brake works on a fail-safe principle. When electrical power is supplied, the brake releases and allows the motor to rotate freely. When the power supply is switched off or interrupted, the brake automatically engages to stop the motor and securely hold the connected load. Brake torque is selected according to the motor capacity, load, duty cycle, and application requirements. A manual brake release mechanism can also be provided on request for maintenance or emergency operation. Bhavani AC Brake Motors are available in B3 Foot Mounted, B5 Full Flange, and B35 Foot Cum Flangeconfigurations. Manufactured with 100% copper winding, IE2 efficiency, and TENV (Totally Enclosed Non-Ventilated) construction, these motors ensure reliable operation, low maintenance, and long service life. IP44/IP55 protection, Class H insulation, and customized shaft or flange options are also available. Technical Specifications • Product Type: Three Phase AC Electromagnetic Brake Motor • Power Range: 0.5 HP to 20 HP • Available Speeds: 720, 960, 1440 & 2880 RPM • Motor Voltage: 415V, Three Phase • Frequency: 50Hz • Brake Type: AC Electromagnetic Fail-Safe Brake • Brake Coil Voltage: 415V AC • Brake Operation: Brake Engages Automatically When Power is OFF • Brake Torque: Selected According to Motor HP & Application • Mounting Options: B3, B5 & B35 • Efficiency: IE2 Standard; IE3 Available on Request • Winding: 100% Copper Winding • Insulation: Class F Standard; Class H on Request • Protection: IP44 / IP55 Available • Enclosure: TENV • Duty Types: S1, S2, S3 & S4 • Aluminium Body Range: 0.5 HP to 3 HP • Cast Iron Body Range: 0.5 HP to 20 HP • IEC Frame Size: 71–160L • Manual Brake Release: Available on Request • Warranty: 12 Months Against Manufacturing Defects Key Features • Fail-safe AC braking operation • Automatic brake engagement during power failure • 415V AC electromagnetic brake • Application-specific brake torque • 100% copper winding • IE2 efficiency as standard • IE3 efficiency available • TENV enclosed construction • IP44/IP55 protection options • Class F insulation • B3, B5 & B35 mounting options • S1, S2, S3 & S4 duty cycles • Manual brake release available • Customized shaft and flange options Customization Options • Special shaft diameter and length • Double or extended shaft • Customized flange diameter and PCD • Custom motor voltage and frequency • Manual brake-release arrangement • Class H insulation • IE3 efficiency • Application-specific duty cycles Applications Bhavani Three Phase AC Brake Motors are widely used in: • EOT Cranes • Industrial Hoists • Lifting Equipment • Conveyor Systems • Material Handling Equipment • Packaging Machinery • Textile Machinery • Machine Tools • Winding & Unwinding Machines • Automated Production Equipment • Industrial Doors & Gates • Position Holding Applications FAQs 1. What is the power range of Bhavani AC Brake Motors? Bhavani AC Brake Motors are available from 0.5 HP to 20 HP. 2. What brake coil voltage is available? The motors are equipped with a 415V AC electromagnetic brake coil. 3. Can the motor be customized? Yes, Bhavani offers customization for shaft dimensions, flange design, voltage, insulation, duty cycle, and manual brake release. Why Choose Bhavani Motors? Bhavani Motors manufactures premium-quality Three Phase AC Brake Motors using advanced engineering, 100% copper winding, and high-performance brake systems. Our motors deliver dependable braking, reliable operation, and long service life for demanding industrial applications. Looking for a reliable Three Phase AC Brake Motor? Contact Bhavani Motors today for expert technical support, customized motor solutions, and a competitive quotation for your application.
