single phase motor

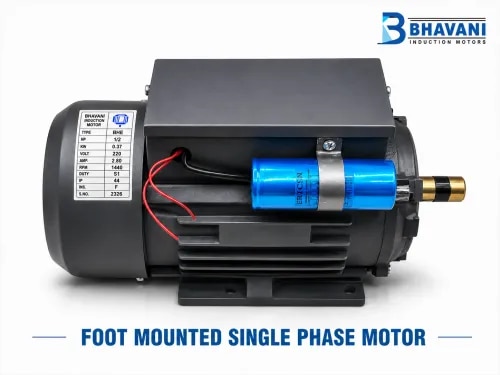

Foot Mounted Single Phase Motor Manufacturer in Ahmedabad. Bhavani Motors is a trusted Single Phase Foot Mounted Motor Manufacturer in Ahmedabad, offering high-performance B3 Foot Mounted Induction Motors for domestic, commercial, agricultural, and light industrial applications. Designed for locations where three-phase power is unavailable, these motors deliver reliable performance, high starting torque, and long service life. Available from 0.25 HP to 5 HP, Bhavani Single Phase Foot Mounted Motors are manufactured in 1440 RPM and 2880 RPM configurations. The B3 Foot Mounted design ensures stable installation, easy alignment, and smooth operation with reduced vibration. These motors operate on 220–240V, 50Hz and feature a dual-capacitor system with separate start and run capacitors. The start capacitor provides high starting torque, while the run capacitor ensures smooth, efficient, and reliable continuous operation. Every motor is manufactured using 100% copper winding with Class F insulation as standard and Class H insulation available on request. The motors feature TEFC (Totally Enclosed Fan Cooled) construction and are suitable for S1 continuous duty. IP44/IP55 protection options are available for demanding operating environments. Bhavani offers Aluminium Body motors from 0.25 HP to 3 HP and Cast Iron Body motors from 0.25 HP to 5 HP. The complete range covers IEC frame sizes 63 to 132S. Customized shaft dimensions, double or extended shafts, and special capacitor configurations are also available to suit specific application requirements. Every Bhavani Single Phase Foot Mounted Motor is backed by a 12-month warranty against manufacturing defects. Technical Specifications • Product Type: Single Phase Foot Mounted Induction Motor • Mounting: B3 Foot Mounted • Power Range: 0.25 HP to 5 HP • Available Speeds: 1440 & 2880 RPM • Voltage: 220–240V • Frequency: 50Hz • Capacitor System: Dual Capacitor (Start & Run) • Winding: 100% Copper Winding • Insulation: Class F Standard; Class H on Request • Protection: IP44 / IP55 Available • Duty: S1 Continuous Duty • Enclosure: TEFC • Aluminium Body Range: 0.25 HP to 3 HP • Cast Iron Body Range: 0.25 HP to 5 HP • IEC Frame Size: 63–132S • Dimensions: IEC Standard Dimensions • Special Shaft: Available on Request • Warranty: 12 Months Against Manufacturing Defects Key Features • B3 foot-mounted construction • Dual-capacitor start and run system • High starting torque • 100% copper winding • 1440 & 2880 RPM options • Aluminium and cast iron body options • TEFC enclosed construction • Class F insulation • IP44/IP55 protection available • Suitable for S1 continuous duty • Smooth and low-noise operation • Customized shaft options available • Special capacitor configuration available Customization Options • Special shaft diameter and length • Double or extended shaft • Customized start and run capacitor configuration • Customized starting torque • Class H insulation • Aluminium or cast iron body Applications Bhavani Single Phase Foot Mounted Motors are widely used in: • Air Compressors • Domestic & Commercial Flour Mills • Industrial Blowers • Agricultural Machinery • Workshop Machinery • Woodworking Machines • Small Conveyors • Packaging Equipment • Food Processing Machines • Textile Machinery • General Purpose Machinery FAQs 1. What is the power range of Bhavani Single Phase Foot Mounted Motors? These motors are available from 0.25 HP to 5 HP. 2. What mounting type is available? The motors are supplied with B3 Foot Mounted construction for stable and easy installation. 3. Can the motor be customized? Yes. Bhavani offers customized shaft dimensions, capacitor configurations, insulation class, and body material based on your application. Why Choose Bhavani Motors? Bhavani Motors manufactures premium-quality Single Phase Foot Mounted Induction Motors using 100% copper winding, precision engineering, and high-quality components. Our motors are designed to provide reliable performance, energy efficiency, and long service life across a wide range of industrial and commercial applications. Looking for a reliable Single Phase Foot Mounted Induction Motor? Contact Bhavani Motors today for expert technical support, customized motor solutions, and the best quotation for your application.

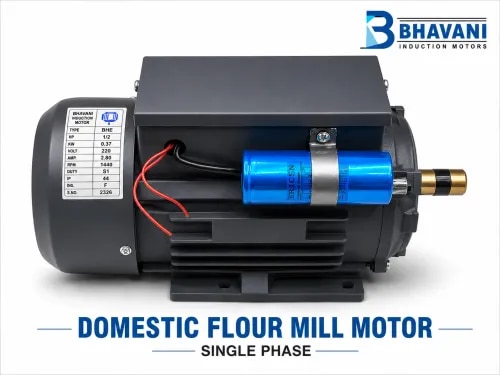

Domestic Flour Mill Motor Manufacturer in Ahmedabad Bhavani Motors manufactures high-performance Domestic Flour Mill Motors specially designed for domestic and commercial flour mill applications. Built for smooth starting and continuous operation, these motors deliver high starting torque to handle the heavy load of grinding machines efficiently. Available in 0.5 HP to 5 HP, Bhavani Domestic Flour Mill Motors are offered in both Single Phase and Three Phase models. Manufactured with 100% copper winding, TEFC construction, and B3 foot mounting, these motors ensure reliable performance, energy efficiency, and a long service life. Aluminium and cast iron body options are available based on the motor capacity and application. Single Phase motors are equipped with a dual-capacitor system (Start & Run Capacitor) for improved starting performance and smooth operation. Technical Specifications • Product Type: Domestic Flour Mill Motor • Power Range: 0.5 HP to 5 HP • Phase Options: Single Phase & Three Phase • Single Phase Speed: 1440 RPM • Three Phase Speeds: 960 RPM & 1440 RPM • Single Phase Voltage: 220–240V, 50Hz • Three Phase Voltage: 415V, 50Hz • Custom Voltage: Available for Three Phase Models • Mounting Type: B3 Foot Mounted • Aluminium Body Range: 0.5 HP to 3 HP • Cast Iron Body Range: 0.5 HP to 20 HP • Capacitor Configuration: Dual Capacitor (Start & Run) for Single Phase Motors • Starting Torque: High Starting Torque • Duty Type: S1 Continuous Duty • Enclosure: TEFC • IP Protection: IP44 / IP55 Available • Insulation: Class F Standard; Class H on Request • IEC Frame Size: IEC 71–132S • Winding: 100% Copper Winding • Warranty: 12 Months Against Manufacturing Defects Key Features • High starting torque for flour mill applications • Premium 100% copper winding • Available in Single Phase and Three Phase • Dual-capacitor system in Single Phase models • Designed for continuous-duty operation • Aluminium and cast iron body options • Low vibration and low-noise performance • TEFC enclosed construction • IP44/IP55 protection available • Custom capacitor and starting torque options • 12-month manufacturing warranty Applications Bhavani Domestic Flour Mill Motors are widely used in: • Domestic Flour Mills • Commercial Flour Mills • Aata Chakki Machines • Grain Grinding Machines • Small Pulverizer Machines • Food Processing Equipment • Spice Grinding Machines • Mini Flour Mill Plants Customization Options Bhavani offers customized Domestic Flour Mill Motors to meet specific application requirements. • Custom voltage for Three Phase models • Special capacitor configuration • Higher starting torque • IP protection options • Class H insulation • Aluminium or cast iron body selection FAQs 1. What is the power range of Bhavani Domestic Flour Mill Motors? Bhavani Domestic Flour Mill Motors are available from 0.5 HP to 5 HP. 2. Are Single Phase and Three Phase models available? Yes, both Single Phase and Three Phase Domestic Flour Mill Motors are available. 3. Do the motors have copper winding? Yes, all Bhavani Domestic Flour Mill Motors are manufactured with 100% copper winding for reliable performance and long service life. Why Choose Bhavani Domestic Flour Mill Motors? Bhavani Motors manufactures durable and energy-efficient Domestic Flour Mill Motors using premium-quality components and precision engineering. With high starting torque, continuous-duty performance, and 100% copper winding, our motors provide dependable operation for domestic and commercial flour milling applications. Looking for a reliable Domestic Flour Mill Motor? Contact Bhavani Motors today for expert guidance, customized solutions, and a competitive quote for your flour mill application.

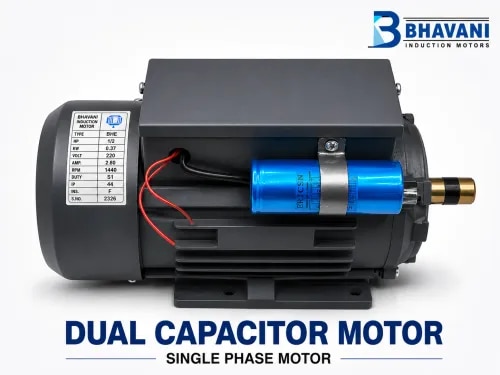

Dual Capacitor Motor Manufacturer in Ahmedabad Bhavani Induction Motors is a trusted Dual Capacitor Motor Manufacturer in Ahmedabad, offering high-performance motors engineered for superior starting torque, smooth running, and long-lasting reliability. A Dual Capacitor Motor is equipped with both a start capacitor and a run capacitor, combining the advantages of high starting power and efficient continuous operation. This design makes it ideal for heavy-duty applications that require frequent starting and consistent performance. Manufactured using premium-grade raw materials, high-quality electrical steel laminations, and 100% copper winding, our Dual Capacitor Motors deliver excellent efficiency, low noise, minimal vibration, and enhanced power factor. These motors are designed to withstand demanding operating conditions while providing reliable and energy-efficient performance. Their robust construction and precision engineering ensure longer service life with minimal maintenance. As a leading Dual Capacitor Motor Supplier in Gujarat and Exporter from India, Bhavani Induction Motors offers a wide range of motors in different power ratings, mounting configurations, and customized specifications to meet diverse industrial, agricultural, and commercial requirements. Key Features Dual capacitor design for high starting torque and efficient running Excellent starting and running performance Energy-efficient operation High power factor 100% copper winding Low vibration and quiet operation Heavy-duty cast iron or aluminum body Long service life with minimal maintenance Superior thermal performance Precision-balanced rotor Reliable performance under continuous-duty applications Available in Foot Mounted and Flange Mounted models Technical Specifications Specification Details Product Type Dual Capacitor Motor Phase Single Phase Mounting Type Foot Mounted / Flange Mounted Power Range 0.5 HP to 5 HP Voltage 220V – 240V Frequency 50 Hz Speed 1440 RPM / 2880 RPM Starting Method Capacitor Start & Capacitor Run Insulation Class B / F Protection Class IP44 / IP55 Duty S1 Continuous Duty Cooling Method Totally Enclosed Fan Cooled (TEFC) Winding Material 100% Copper Body Material Cast Iron / Aluminium Bearing Heavy Duty Ball Bearings Ambient Temperature Up to 50°C Applications Water Pumps Air Compressors Pressure Booster Pumps Agricultural Equipment Industrial Blowers Packaging Machinery Textile Machinery Food Processing Machines Workshop Equipment Machine Tools Woodworking Machines General Industrial Machinery Why Choose Bhavani Induction Motors? Leading Dual Capacitor Motor Manufacturer in Ahmedabad High starting torque with smooth continuous operation Premium-quality 100% copper winding Advanced manufacturing technology Energy-efficient and durable motors Strict quality control and testing Customized motor solutions Competitive pricing Timely delivery across India Reliable technical and after-sales support FAQs 1. What is the advantage of a Dual Capacitor Motor? A Dual Capacitor Motor uses both a start capacitor and a run capacitor, providing high starting torque, improved running efficiency, better power factor, reduced noise, and reliable continuous operation for heavy-duty applications. 2. Why choose Bhavani Induction Motors for Dual Capacitor Motors? Bhavani Induction Motors manufactures premium-quality Dual Capacitor Motors with 100% copper winding, advanced engineering, superior energy efficiency, and strict quality testing to ensure reliable performance and long service life. Looking for a trusted Dual Capacitor Motor Manufacturer in Ahmedabad? Contact Bhavani Induction Motors today for premium-quality, energy-efficient Dual Capacitor Motors with customized specifications, competitive pricing, and fast delivery across India.

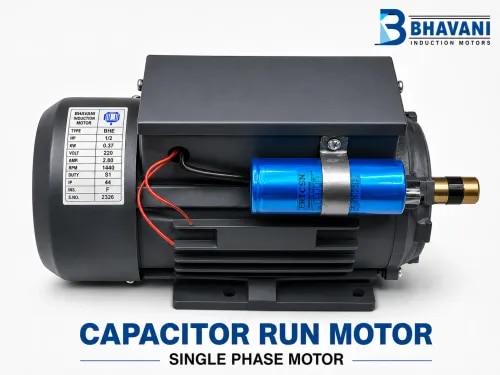

Capacitor Run Motor Manufacturer in Ahmedabad Bhavani Induction Motors is a leading Capacitor Run Motor Manufacturer in Ahmedabad, offering premium-quality motors designed for continuous, smooth, and energy-efficient operation. Capacitor Run Motors use a permanently connected run capacitor that enhances power factor, improves running efficiency, and ensures quiet operation. These motors are widely used in applications requiring continuous performance, low noise, and reliable operation. Manufactured with high-quality electrical steel laminations, precision-balanced rotors, and 100% copper winding, our Capacitor Run Motors provide excellent speed regulation, reduced vibration, and longer service life. Their compact and robust construction makes them suitable for domestic, commercial, and light industrial applications where efficiency and reliability are essential. As a trusted Capacitor Run Motor Supplier in Gujarat and Exporter from India, Bhavani Induction Motors offers a wide range of Capacitor Run Motors in different power ratings, mounting configurations, and customized specifications to meet various application requirements. Key Features Permanent capacitor for smooth running Energy-efficient performance High power factor Low noise and vibration 100% copper winding Excellent speed regulation Heavy-duty and durable construction Low maintenance requirements High operating efficiency Compact and lightweight design Long service life Suitable for continuous-duty applications Technical Specifications Specification Details Product Type Capacitor Run Motor Phase Single Phase Mounting Type Foot Mounted / Flange Mounted Power Range 0.25 HP to 3 HP Voltage 220V – 240V Frequency 50 Hz Speed 1440 RPM / 2880 RPM Starting Method Capacitor Run Insulation Class B / F Protection Class IP44 / IP55 Duty S1 Continuous Duty Cooling Method Totally Enclosed Fan Cooled (TEFC) Winding Material 100% Copper Body Material Cast Iron / Aluminium Bearing Heavy Duty Ball Bearings Ambient Temperature Up to 50°C Applications Ceiling and Exhaust Fans Air Coolers Water Pumps Blowers Ventilation Systems HVAC Equipment Small Compressors Food Processing Machines Textile Machinery Packaging Equipment Workshop Machinery General Industrial Applications Why Choose Bhavani Induction Motors? Trusted Capacitor Run Motor Manufacturer in Ahmedabad High-quality 100% copper winding Energy-efficient and low-maintenance motors Advanced manufacturing and precision engineering Strict quality inspection Reliable and long-lasting performance Competitive pricing Custom-built motor solutions Timely delivery across India Dedicated technical and after-sales support FAQs 1. What is the advantage of a Capacitor Run Motor? A Capacitor Run Motor offers smooth and quiet operation, improved power factor, better efficiency, low vibration, and reliable continuous performance, making it ideal for domestic and light industrial applications. 2. Why choose Bhavani Induction Motors for Capacitor Run Motors? Bhavani Induction Motors manufactures premium-quality Capacitor Run Motors using 100% copper winding, advanced engineering, and rigorous quality testing to ensure energy efficiency, durability, and dependable operation. Looking for a reliable Capacitor Run Motor Manufacturer in Ahmedabad? Contact Bhavani Induction Motors today for high-performance, energy-efficient Capacitor Run Motors with customized solutions, competitive pricing, and fast delivery across India.

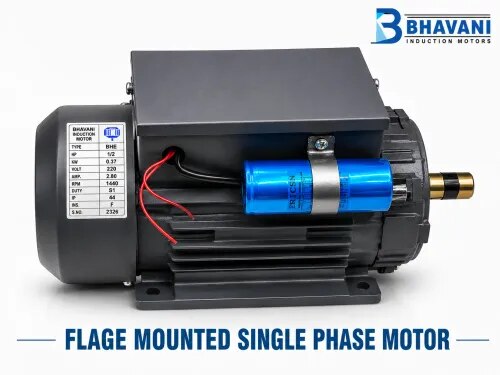

Single Phase B5 Flange Mounted Induction Motor in Ahmedabad. Bhavani Motors is a leading Single Phase Flange Mounted Motor Manufacturer in Ahmedabad, offering high-performance B5 Flange Mounted Induction Motors for pumps, gearboxes, blowers, compressors, and OEM machinery. Designed for applications where three-phase power is unavailable, these motors provide reliable performance, compact installation, and long service life. Available from 0.25 HP to 5 HP, Bhavani Single Phase B5 Flange Mounted Motors are manufactured in 1440 RPM and 2880 RPM configurations. The IEC B5 Full Flange mounting ensures precise shaft alignment and secure direct coupling with driven equipment. These motors operate on 220–240V, 50Hz and feature a dual-capacitor system consisting of a start capacitor and a run capacitor. This design provides high starting torque, smooth acceleration, and dependable continuous operation. Manufactured with 100% copper winding, Class F insulation, and TEFC (Totally Enclosed Fan Cooled)construction, these motors deliver excellent efficiency and durability. IP44/IP55 protection and Class H insulationare available for demanding operating environments. Bhavani offers Aluminium Body motors from 0.25 HP to 3 HP and Cast Iron Body motors from 0.25 HP to 5 HP. The motors are available in IEC frame sizes 63 to 132S, with customized flange dimensions, shaft size, PCD, and mounting holes as per customer drawings. Every motor is supplied with a 12-month warranty against manufacturing defects. Technical Specifications • Product Type: Single Phase Flange Mounted Induction Motor • Mounting: B5 Full Flange • Power Range: 0.25 HP to 5 HP • Available Speeds: 1440 & 2880 RPM • Voltage: 220–240V • Frequency: 50Hz • Capacitor System: Dual Capacitor (Start & Run) • Winding: 100% Copper Winding • Insulation: Class F Standard; Class H on Request • Protection: IP44 / IP55 Available • Duty: S1 Continuous Duty • Enclosure: TEFC • Aluminium Body Range: 0.25 HP to 3 HP • Cast Iron Body Range: 0.25 HP to 5 HP • IEC Frame Range: 63–132S • Standard Flange: IEC B5 Full Flange • Custom Flange & PCD: Available on Request • Special Shaft: Available on Request • Warranty: 12 Months Against Manufacturing Defects Key Features • IEC B5 Full Flange mounting • Dual-capacitor (Start & Run) design • High starting torque • 100% copper winding • Accurate alignment for direct coupling • Aluminium and cast iron body options • 1440 & 2880 RPM options • TEFC enclosed construction • Class F insulation • IP44/IP55 protection options • Suitable for S1 continuous duty • Customized shaft and flange options • Smooth, reliable, and low-noise operation Customization Options • Customized flange outer diameter • Custom flange PCD • Special mounting-hole dimensions • Special shaft diameter and length • Double or extended shaft • Customized capacitor configuration • Higher starting torque • Class H insulation Applications Bhavani Single Phase B5 Flange Mounted Motors are suitable for: • Water Pumps • Industrial & Agricultural Pumps • Gearboxes • Air Compressors • Industrial Blowers • Packaging Machinery • Food Processing Machines • Textile Machinery • Mixers & Agitators • Machine Tools • OEM Industrial Machinery FAQs 1. What is the power range of Bhavani Single Phase B5 Flange Mounted Motors? These motors are available from 0.25 HP to 5 HP. 2. What type of mounting is provided? The motors are supplied with IEC B5 Full Flange mounting for direct machine coupling. 3. Can the flange and shaft dimensions be customized? Yes. Bhavani offers customized flange dimensions, PCD, shaft diameter, shaft length, and mounting details as per customer requirements. Why Choose Bhavani Motors? Bhavani Motors manufactures high-quality Single Phase B5 Flange Mounted Induction Motors using premium materials, 100% copper winding, and precision engineering. Our motors deliver reliable performance, easy installation, and long service life for industrial and OEM applications. Looking for a reliable Single Phase B5 Flange Mounted Induction Motor? Contact Bhavani Motors today for expert technical support, customized motor solutions, and a competitive quotation for your application.

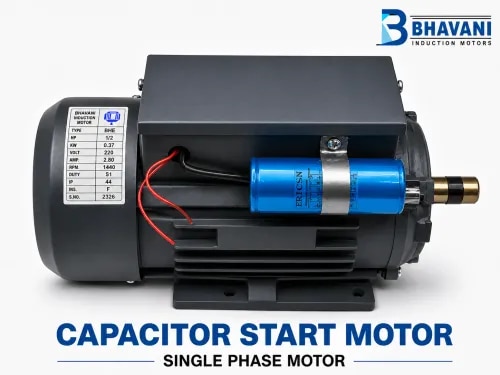

Capacitor Start Motor Manufacturer in Ahmedabad. Bhavani Induction Motors is a trusted Capacitor Start Motor Manufacturer in Ahmedabad, offering high-performance motors designed to deliver exceptional starting torque and reliable operation. Capacitor Start Motors are ideal for applications that require high starting power, making them suitable for pumps, compressors, conveyors, machine tools, and various industrial and agricultural equipment. Our Capacitor Start Motors are manufactured using premium-grade raw materials, high-quality electrical steel laminations, and 100% copper winding to ensure maximum efficiency, durability, and long service life. The built-in starting capacitor provides increased starting torque, allowing the motor to start heavy loads smoothly while minimizing power consumption. With low vibration, quiet operation, and robust construction, these motors perform efficiently even under demanding working conditions. As a leading Capacitor Start Motor Supplier in Gujarat and Exporter from India, Bhavani Induction Motors provides motors in different power ratings and customized specifications to meet the requirements of various industries. Key Features High starting torque for heavy-duty applications Premium-quality starting capacitor 100% copper winding for improved efficiency Energy-efficient and low power consumption Smooth and reliable starting performance Low vibration and quiet operation Heavy-duty cast iron or aluminum body Long operational life with minimal maintenance High-quality ball bearings Compact and robust design Excellent thermal performance Suitable for continuous-duty operation Technical Specifications Specification Details Product Type Capacitor Start Motor Phase Single Phase Mounting Type Foot Mounted / Flange Mounted Power Range 0.25 HP to 5 HP Voltage 220V – 240V Frequency 50 Hz Speed 1440 RPM / 2880 RPM Starting Method Capacitor Start Insulation Class B / F Protection Class IP44 / IP55 Duty S1 Continuous Duty Cooling Method Totally Enclosed Fan Cooled (TEFC) Winding Material 100% Copper Body Material Cast Iron / Aluminium Bearing Heavy Duty Ball Bearings Ambient Temperature Up to 50°C Applications Water Pumps Air Compressors Reciprocating Compressors Agricultural Machinery Machine Tools Conveyors Workshop Equipment Flour Mills Industrial Blowers Textile Machinery Woodworking Machines General Industrial Equipment Why Choose Bhavani Induction Motors? Leading Capacitor Start Motor Manufacturer in Ahmedabad Superior starting torque for demanding applications High-quality 100% copper winding Advanced manufacturing technology Energy-efficient and durable design Strict quality testing Competitive pricing Customized motor solutions Fast delivery across India Reliable technical and after-sales support FAQs 1. What is a Capacitor Start Motor used for? A Capacitor Start Motor is designed for applications requiring high starting torque, such as water pumps, air compressors, conveyors, machine tools, and agricultural equipment. It provides smooth starting even under heavy loads. 2. Why choose Bhavani Induction Motors for Capacitor Start Motors? Bhavani Induction Motors manufactures premium-quality Capacitor Start Motors with 100% copper winding, high-performance starting capacitors, energy-efficient operation, and durable construction to ensure reliable performance and a long service life. Looking for a trusted Capacitor Start Motor Manufacturer in Ahmedabad? Contact Bhavani Induction Motors today for premium-quality, energy-efficient Capacitor Start Motors with customized solutions, competitive pricing, and fast delivery across India.

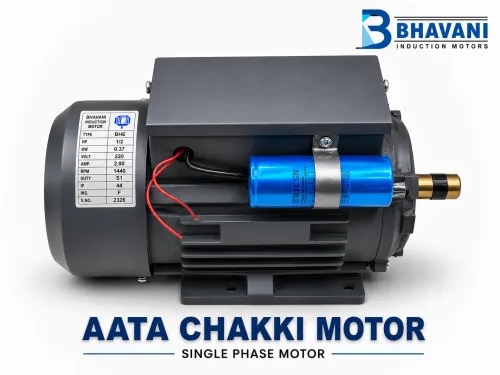

Aata Chakki Motor Dealer in Ahmedabad. Bhavani Motors manufactures high-performance Aata Chakki Motors specially designed for domestic and commercial flour mill applications. Built for smooth starting and continuous operation, these motors deliver high starting torque to handle the heavy load of grinding machines efficiently. Available in 0.5 HP to 5 HP, Bhavani Aata Chakki Motors are offered in both Single Phase and Three Phase models. Manufactured with 100% copper winding, TEFC construction, and B3 foot mounting, these motors ensure reliable performance, energy efficiency, and a long service life. Aluminium and cast iron body options are available based on the motor capacity and application. Single Phase motors are equipped with a dual-capacitor system (Start & Run Capacitor) for improved starting performance and smooth operation. Technical Specifications • Product Type: Aata Chakki / Flour Mill Motor • Power Range: 0.5 HP to 5 HP • Phase Options: Single Phase & Three Phase • Single Phase Speed: 1440 RPM • Three Phase Speeds: 960 RPM & 1440 RPM • Single Phase Voltage: 220–240V, 50Hz • Three Phase Voltage: 415V, 50Hz • Custom Voltage: Available for Three Phase Models • Mounting Type: B3 Foot Mounted • Aluminium Body Range: 0.5 HP to 3 HP • Cast Iron Body Range: 0.5 HP to 20 HP • Capacitor Configuration: Dual Capacitor (Start & Run) for Single Phase Motors • Starting Torque: High Starting Torque • Duty Type: S1 Continuous Duty • Enclosure: TEFC • IP Protection: IP44 / IP55 Available • Insulation: Class F Standard; Class H on Request • IEC Frame Size: IEC 71–132S • Winding: 100% Copper Winding • Warranty: 12 Months Against Manufacturing Defects Key Features • High starting torque for flour mill applications • Premium 100% copper winding • Available in Single Phase and Three Phase • Dual-capacitor system in Single Phase models • Designed for continuous-duty operation • Aluminium and cast iron body options • Low vibration and low-noise performance • TEFC enclosed construction • IP44/IP55 protection available • Custom capacitor and starting torque options • 12-month manufacturing warranty Applications Bhavani Aata Chakki Motors are widely used in: • Domestic Flour Mills • Commercial Flour Mills • Aata Chakki Machines • Grain Grinding Machines • Small Pulverizer Machines • Food Processing Equipment • Spice Grinding Machines • Mini Flour Mill Plants Customization Options Bhavani offers customized Aata Chakki Motors to meet specific application requirements. • Custom voltage for Three Phase models • Special capacitor configuration • Higher starting torque • IP protection options • Class H insulation • Aluminium or cast iron body selection FAQs 1. What is the power range of Bhavani Aata Chakki Motors? Bhavani Aata Chakki Motors are available from 0.5 HP to 5 HP. 2. Are Single Phase and Three Phase models available? Yes, both Single Phase and Three Phase Aata Chakki Motors are available. 3. Do the motors have copper winding? Yes, all Bhavani Aata Chakki Motors are manufactured with 100% copper winding for reliable performance and long service life. Why Choose Bhavani Aata Chakki Motors? Bhavani Motors manufactures durable and energy-efficient Aata Chakki Motors using premium-quality components and precision engineering. With high starting torque, continuous-duty performance, and 100% copper winding, our motors provide dependable operation for domestic and commercial flour milling applications. Looking for a reliable Aata Chakki Motor? Contact Bhavani Motors today for expert guidance, customized solutions, and a competitive quote for your flour mill application.
